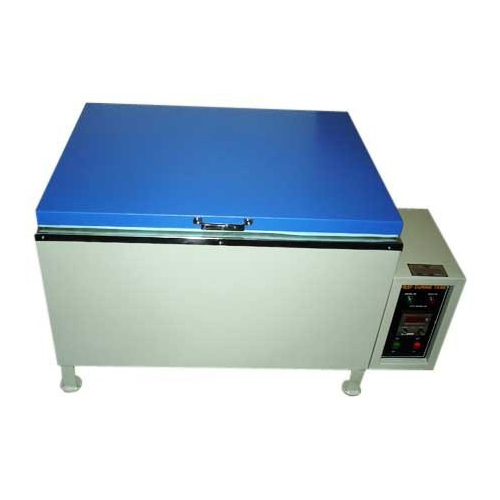

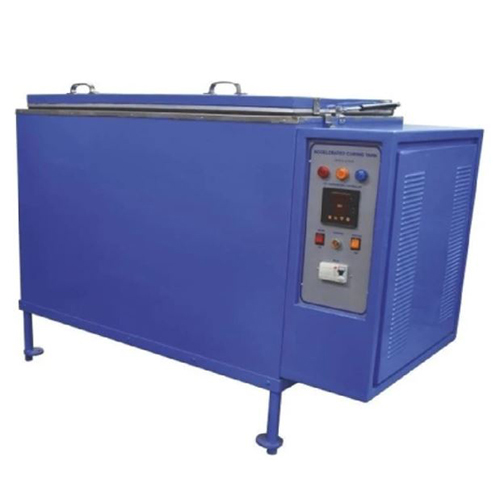

Accelerated Curing Tank

Get a Price/Quote

Accelerated Curing Tank Specification

Mounting Type
Free Stand

Application
Testing & Measurement

Features
Accurate

Power Supply
Electric

Usage
Industrial

About Accelerated Curing Tank

Product details

Accuracy	+/- 1%
Temperature	Up to 100 Deg C
Material for Construction	Stainless steel
Display	Digital
Cycle	24 Hour cycle

Curing Tank having capacity to accommodate 6/12/18 Concrete Cubes of 150mm size with a facility for accelerated curing by Boiling water method up to temperature range : 100 +/- 2 deg.C as per IS standard IS : 9013. It also has capacity for curing by warm water method at temperature 55 +/- 2 deg.C

Tank will consist of a rectangular double walled metal cabinet, inside lined with stainless steel, outer powder coated. Easily replaceable high Wattage heaters are mounted in side the chamber. A slow speed stirrer is provided to circulate water inside the chamber to maintain the uniform temperature of water. A strong stainless steel perforated platform is provided for keeping the cubes and also have a lid with lifting handle to cover the chamber.

The temperature is indicated and controlled by a DIGITAL auto tuning PID Temp. Controller with soak timer to control the duration of heating and then to shut down the system without manual attendance. The front panel will have power supply indicating lamp, control action indication lamp and one main switch

Specification

The dimension of curing tank Suitable for accommodated twelve, 150 mm cube is 1.60M, 0.50M, 0.65M respectively.
Design based on the IS 9013-1978
Suitable for operation on 220 V, 50 Hz single phase, AC supply or 440 V 50 Hz, three phase AC supply, for bigger size of curing tank.
